Italdem GF Series
Italdem GF 20 Crusher Bucket
Takes 30 seconds · B2B only
Heavy-duty attachment for 13–18 t excavators, with a written quote before any payment.
For 13–18 t excavators
- Oil flow
- 110–115 l/min
- Working pressure
- 180–200 bar
- Weight
- 1900 kg
Price on request
B2B only (company + valid EU VAT) · delivery in the EU · freight quoted separately
Ask for your quoteCompetitive dealer prices for companies – we send you a written quote.
- Same-day reply · usually within 2 hours
- Spare & wear parts – Price on request
No VAT is charged by Thunderline OÜ – VAT is accounted for by you in your country of delivery (reverse charge, Art. 141 and 197 Directive 2006/112/EC).
Total to pay: products + freight (separate line). A valid EU VAT number of the Member State of arrival, verified in VIES, is required. Delivery in the EU. Why is no VAT charged?
Need a written quote? Talk to a specialist.
hello@thunderline.eu · Same-day reply · usually within 2 hours
Business customers only: a valid EU VAT number issued in the country of delivery is required. Machines: bank transfer (SEPA) against a proforma invoice. Parts and small items: card. Payment is only due after we have checked your VAT number in VIES, confirmed fit and you have accepted our written quote.
- Fit and VAT number are checked before you accept the written quote and pay.
This product is currently not available for delivery to your country.
SKU: ITALDEM-GF20
Machine fit
Is it right for your machine?
Check carrier class, hydraulics and mounting before you order. If anything is unclear, send us your machine details — we confirm fit before you accept the written quote and pay.
- Carrier class
- 13–18 t
- Oil flow
- 110–115 l/min
- Working pressure
- 180–200 bar
Requirements per Italdem datasheet
- Excavators of 13–18 t with an auxiliary circuit delivering 110–115 l/min at 180–200 bar
- Hose connections 1" GAS; HP/LP hose inner diameter 20 mm / 30 mm
- Mounting to suit your carrier and quick coupler is confirmed in your quotation
Product overview
Key features

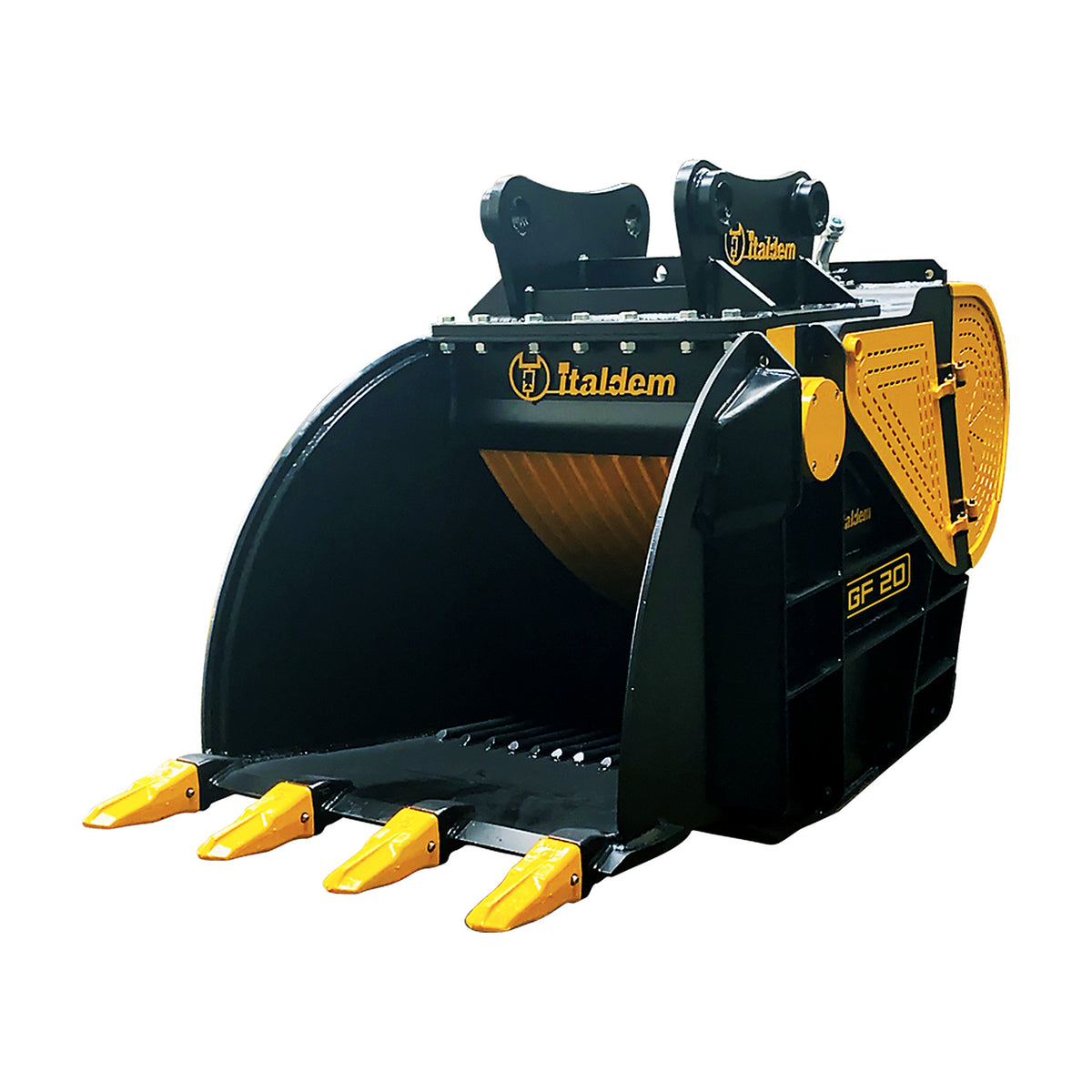

The Italdem GF 20 is a crusher bucket from the GF series for excavators of 13–18 t. It reduces demolition waste to smaller pieces so the material can be processed directly on site. It has a 600 × 500 mm feeder opening, an adjustable output size of 30–150 mm and runs on 110–115 l/min at 180–200 bar.
Design features (per Italdem)
- HP/LP reversal
- Sound insulation and anti-vibration device
- Wide opening
- Easy greasing
- Quick access to check belt status
- Output size adjustment
Features as stated by Italdem. Technical data are non-binding per the manufacturer and are confirmed with your order.

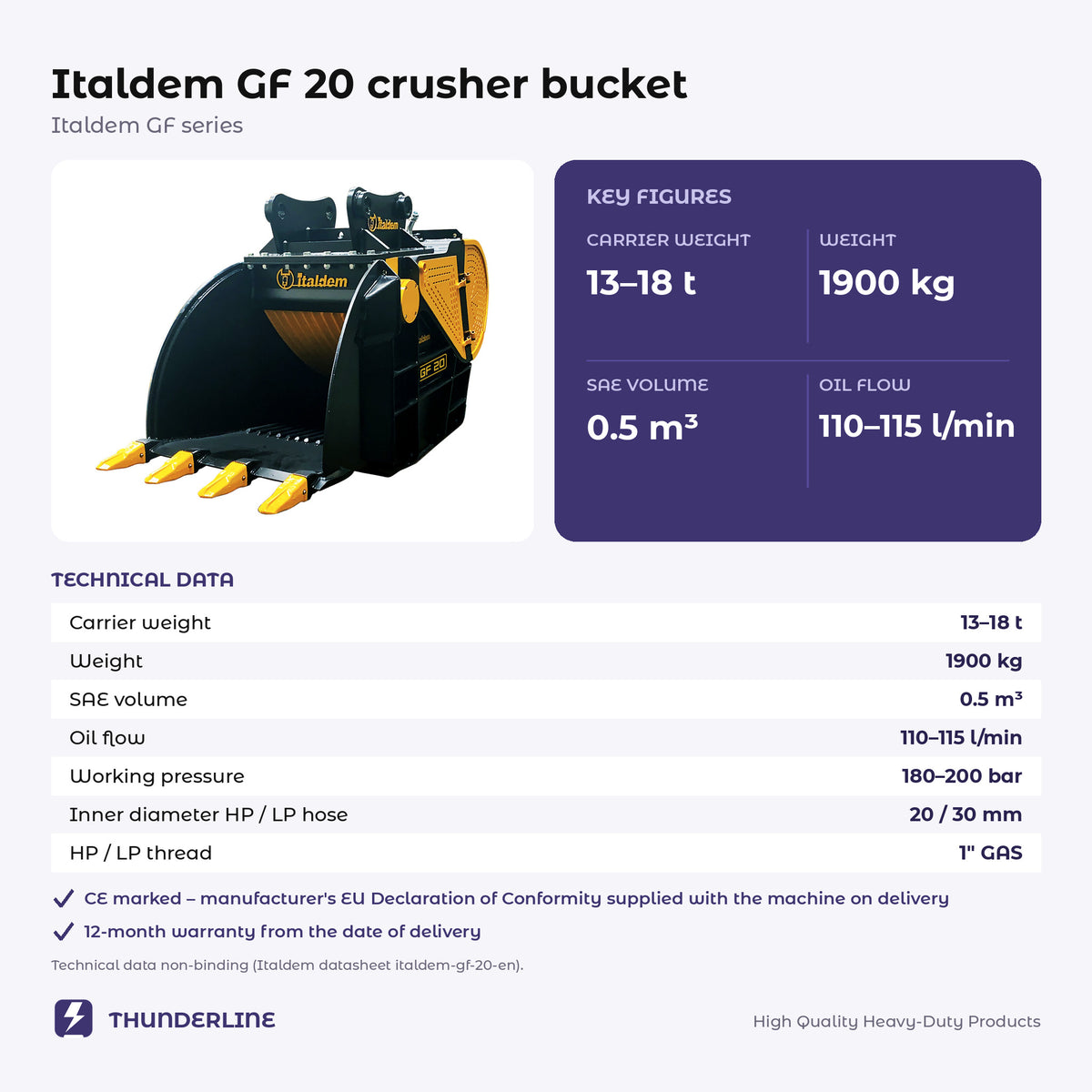

Technical data
Specifications
Figures from the Italdem datasheet. Check oil flow, pressure and weight against your carrier.
| Model | Italdem GF 20 (GF series) |
|---|---|
| Carrier class | 13–18 t |
| Weight | 1900 kg |
| Feeder opening | 600 × 500 mm |
| Output size | 30–150 mm |
| SAE volume | 0.5 m³ |
| Oil flow | 110–115 l/min |
| Working pressure | 180–200 bar |
| Inner diameter HP / LP hose | 20 mm / 30 mm |
| HP / LP thread | 1" GAS / 1" GAS |
| Warranty | 12-month warranty from the date of delivery, claims handled through Thunderline. |
| SKU | ITALDEM-GF20 |
Technical data from the Italdem datasheet (GF 20). The final specification is confirmed with your order.
In the box
What's included
- Crusher bucket
- Hydraulic hoses
- 12-month warranty from the date of delivery, claims handled through Thunderline
Ordering
How ordering works
-
Request a quote
Just your name, company and e-mail or phone.
-
Machine details and written quote
We review your machine details and EU VAT number, then send a written quote (freight on a separate line).
-
Payment
Confirm the quote and pay by SEPA bank transfer against our proforma – then we arrange delivery.
Warranty and documents
Warranty & documentation
12-month warranty – claims handled through Thunderline
12-month warranty from the date of delivery, claims handled through Thunderline. Claims: email hello@thunderline.eu with your order number, photos and a short description.
Spare and wear parts: we supply spare and wear parts from the manufacturer for every attachment we sell, on request. Request parts
Documentation
Documentation (datasheet) is supplied; an EU Declaration of Conformity is supplied only where the manufacturer has issued one.
Brand: Italdem
Technical data on this page are taken from the manufacturer's documentation.
Sold and invoiced by Thunderline OÜ (Estonia), an independent EU reseller.
Will the Italdem GF 20 Crusher Bucket fit my excavator?
It is specified for 13–18 t carriers per the Italdem datasheet. Fit also depends on your auxiliary hydraulics. Send us make, model, operating weight and coupler type — we check them and confirm fit before you accept the written quote and pay.
What hydraulic supply does it need?
Per the Italdem datasheet: 110–115 l/min oil flow at 180–200 bar. Relief valve setting, return-line back pressure and any second circuit (e.g. rotation) are listed under “Is it right for your machine?” above.
How is it delivered, and who unloads it?
Delivery to your address in the EU (unloading by you; tail lift not included by default – available on request at an extra charge, quoted per order), by freight carrier. The delivery window is confirmed in writing per order. Please have a forklift or other suitable lifting equipment and truck access ready. We deliver within the EU only; available countries are shown at checkout and freight is shown as a separate line.
Can I buy without a VAT number? How is VAT handled?
We sell to business customers only — a valid EU VAT number issued in the country of delivery is required. Your VAT number is checked (VIES) before you accept the written quote and pay, and the VAT treatment is shown on your invoice.
What warranty and documents do I get?
12-month warranty from the date of delivery, claims handled through Thunderline. Documentation (datasheet) is supplied; an EU Declaration of Conformity is supplied only where the manufacturer has issued one. For a claim, email hello@thunderline.eu with your order number, photos and a short description.
Can I return it?
Thunderline sells to businesses only (B2B); there is no statutory right of withdrawal. Returns only by prior agreement via return authorisation (RMA) – for example a wrong item or a defect on arrival; returns are sent to the address stated in the RMA. Made-to-order items may be non-returnable; a restocking fee and return freight can apply. Please confirm fit with us before you order, and report visible transport damage within 48 hours with photos.
When do I pay, and how long does delivery take?
Payment is only due after we have checked your VAT number in VIES, confirmed fit and you have accepted our written quote. The delivery window is confirmed in writing per order.
Why is no VAT charged?
Total to pay: products + freight (separate line). No VAT is charged by Thunderline OÜ – VAT is accounted for by you in your country of delivery (reverse charge, Art. 141 and 197 Directive 2006/112/EC). A valid EU VAT number of the Member State of arrival, verified in VIES, is required. Delivery in the EU.
Do you supply spare and wear parts?
Yes. We supply spare and wear parts from the manufacturer for every attachment we sell, on request. Send us the model and serial number and we will come back with a quote. Parts are shipped directly to you by courier; freight is shown as a separate line in the quote.
